E Range Class "A" Acoustic Screens
This strong and sturdy acoustic screen design allows these versatile class A acoustic office dividers to fully utilise your office space.
Versatile sturdy and flexible.
The E range of office dividers and desktop partitions offer good acoustic qualities, sturdy construction and an eight year guarantee combined with a host of other options and features.
E range of office dividers includes the following office screen types, EFS floor standing screens, ELK floor linking screens and EPDT pinnable desk divider.
They have good acoustic sound reducing qualities a choice of many fabrics and colours plus the desk divider has an inbuilt pinnable rail as standard.
EFS Floor standing
ELK Linking screens
The above two styles of office screens make up the the E Range, .
The ELK range of Linking office screens have all the features of the EFS range, plus a straight forward linking system that is infinitely flexible and easy to link in two way, three way and four way cross sections to fully utilise your office space.
EFS range office dividers can be supplied with an optional Freespace system rails which are built into the body of the screen, the Freespace rail accepts a complete range of trays, shelves and assorted office tools, this rail is designed to free space from your desk by utilising the un-used space on you office divider.
Freespace system rails are designed to keep everyday tools off the desk surface but close at hand.
Easy linking system
The simple to install ECO Linking System allows any number of screens to be joined together with the facility to arrange and re-arrange them at will.
The linking mechanism adds 20mm overall to the width of the screen.
EFS Floor standing screens come with STD stabilising feet, ELK Linking screens come with ALF height adjustable feet.

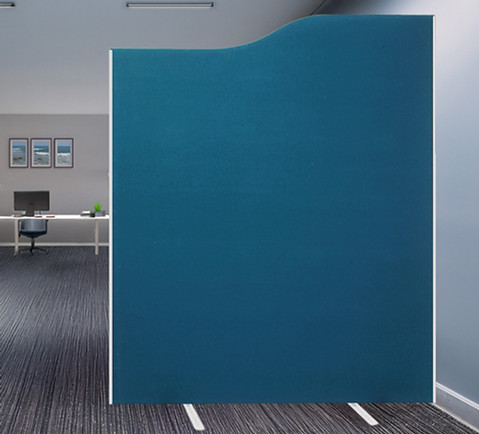

E Range screen top styles
Angle, Shape and Radius top options are available for all the office screens in the E range.
Unless otherwise requested, standard production screen top sculpturing will reduce the height of the screen at its lowest end to that of the next standard size down, however any standard height can be chosen for the lower end.
Our custom department will be pleased to quote for non-standard heights and shapes.
7 Standard Widths
E Range Office Screen Sizes
7 Standard Heights
Please note that these are our standard sizes. Eco Manufacturing can create any size screen you require, call us to find out more.
The Freespace tool rail can be directly fitted at the time of manufacturer to new screens from the Jubilee and E Ranges.
E Range Vision Screens
E range Vision office screens are designed to allow a measure of privacy, but still give an overview of other areas. The acrylic shatter-proof vision panels come in Clear, Grey or Bronze. Clear acrylic is fitted as standard unless specified otherwise.
Top Vision panels are 450mm deep and Half Vision panels would be half the height of the screenm, a 1800mm high screen would have about 900mm of vision and Full vision screens have a maximum width of 1000mm.
E Range curved screens
Curved screens not only give office designers the opportunity to soften the lines of work areas, but allow the creation of Pod style quite areas.
There are two standard curves available 2.5m or 0.8m, giving either a shallow curve over a distance of 1400mm or a complete 90 degree angle. With other radius curves made to order.
Curved vision office dividers are available in a choice of 6 standard heights and two styles of vision, top vision and half vision, the radius of these screens are 0.8m.
6 Standard Heights
E Range office screens come with an 8 year guarantee
E Range doors
With this E range internal door and metal frame you can link easily to our office dividers to achieve a secure office environment, the E door comes complete and fully fitted with lock, keys and lever style handles.
Ideal for departmental areas where privacy is essential such as wages, interviews, accounts and disciplinary meetings. The frame quickly and simpliy links to other office dividers and is made from robust steel the size of the door frame is 2100 x 900mm.
All fixings are supplied with the door, enabling you to fix the door frame directly to the floor, there is also a wall fitting available for direct and secure wall fitting.

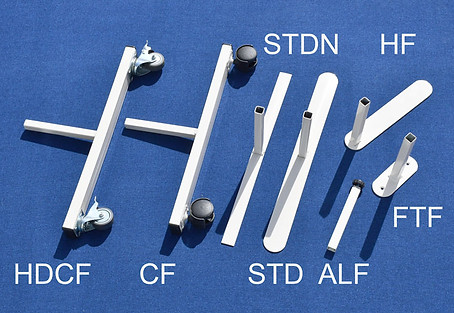

E Range feet
The feet included in the EFS or ELK office screen prices are;
STD stabilising feet for EFS
ALF adjustable levelling feet for ELK
HF half feet EFS
FTF fix to floor feet EFS
In addition to the standard types of feet supplied with EFS and ELK office screens, there are other feet options available at an extra cost, including;
castor feet (CF)
extra height stabilising feet 150mm, 300mm and 720mm (STD15/30/72)
adjustable levelling feet 150mm, 300mm and 720mm (ALF15/30/72)
Colours available include;
*Light Grey is supplied as standard unless otherwise specified.
Elfin fabric colours
Elfin fabric comes as standard, in a range of colours, however, custom fabric options are available, just speak to one of our sales team.
Colour Match Batch to batch shade variations may occur.
240gsm approx per square metre
BS 476 part7 (class1)
BS EN 1021-1 :1994 (cigarette)
BS 1006 Level 5-6
Office screen panels
